A suite of Time-Code functions: receive, transmit, analyze, reshape, generate

Supports multiple protocols with all industry standard rates and formats

Many In – Primary Out : converts primary input to all available outputs

Take advantage of existing networking infrastructure by adding multiple CodeBridges to distribution drop points



  • Primary Source conversion – any input can be elected as “primary” and forwarded to the outputs

  • Automatic failover – if a source is lost, the next input is promoted to primary

  • Distribute timecode through a theoretically unlimited number of CodeBridges on the network

  • Assign StreamID to transmitted streams and filter incoming streams

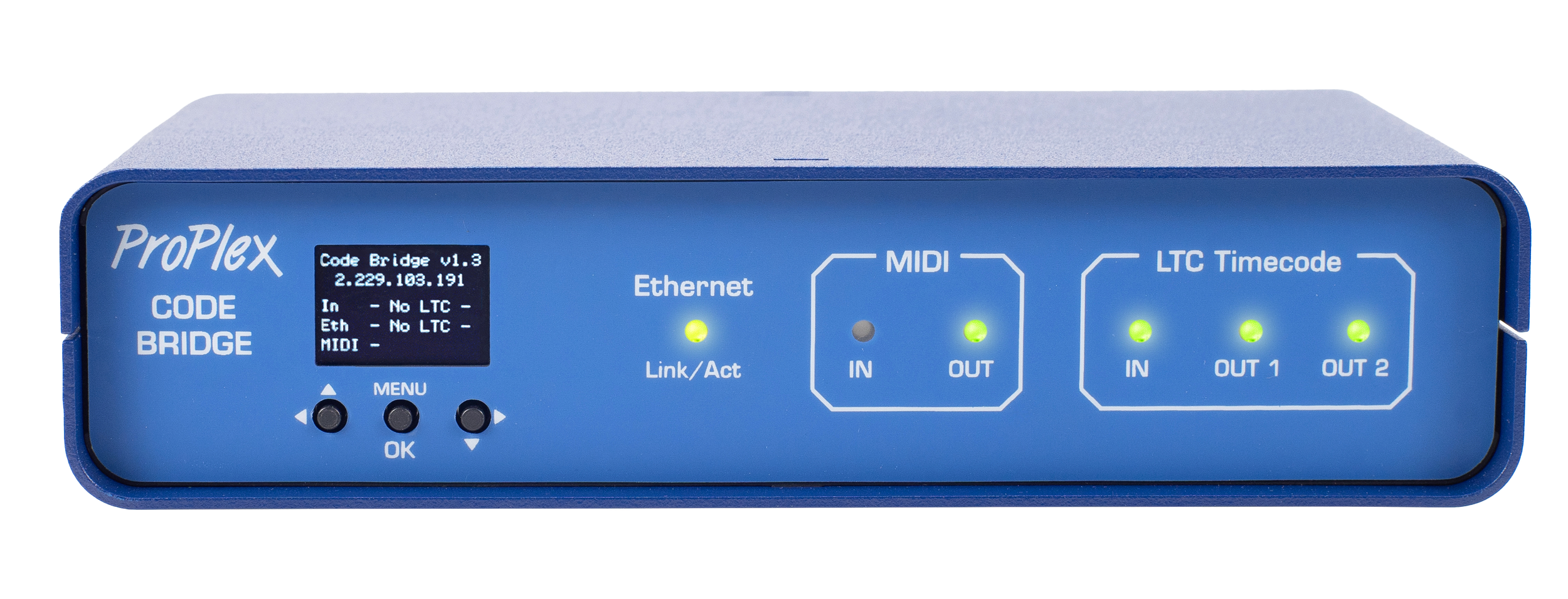

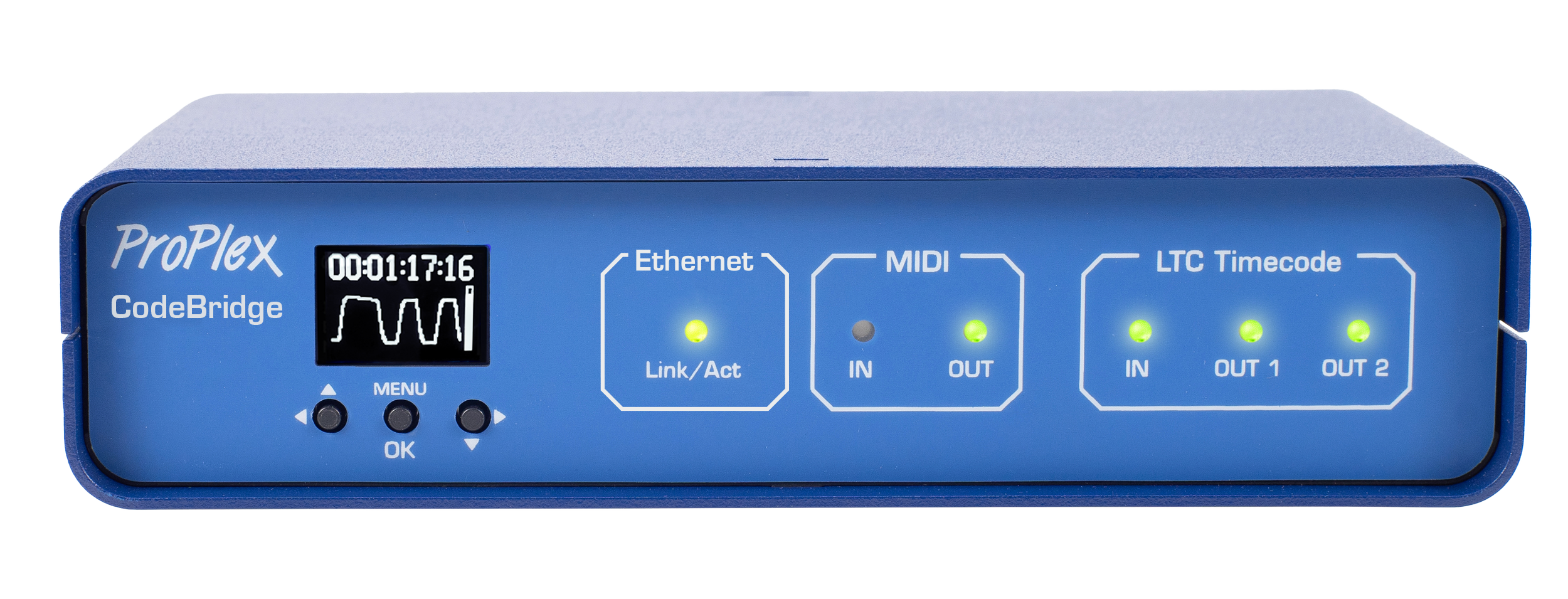

  • OLED control panel with intuitive user interface, input monitors and LTC oscilloscope

  • Remote access and LTC scope via ProPlex Software GUI*

  • Assign CodeBridge names to help distinguish between units on the same network*

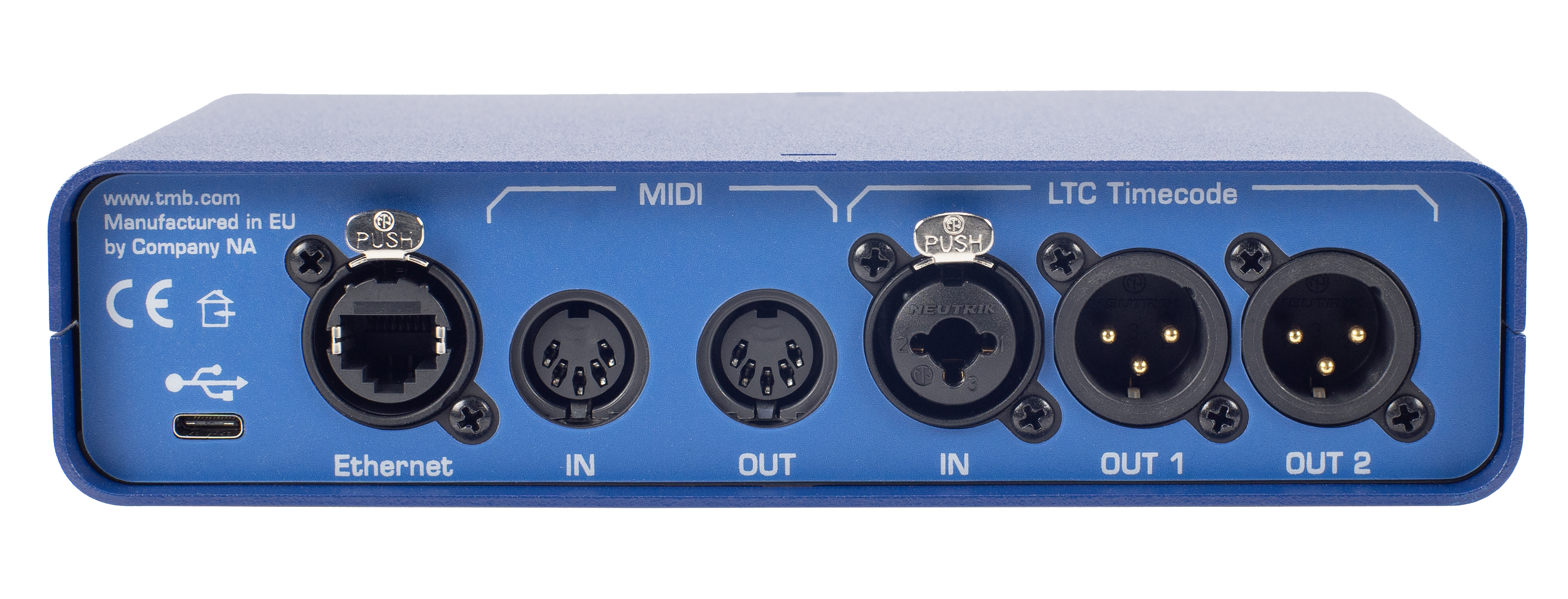

  • Two transformer-isolated XLR3 LTC outputs.  Adjustable output level (-18 dBu to +9 dBu)

  • Front panel status LEDs for Ethernet, MIDI and LTC

  • Compact, lightweight, rugged, reliable.  Backpack friendly

  • Available rackmount kit and yoke options

  • Redundant power – USB-C and PoE

    Receive and send Time-Code over:

    1. Ethernet (Art-Net TC)

    2. LTC (SMPTE)

    3. DIN-5 MIDI (MTC)

    4. USB MIDI (MTC)

    5. rtpMIDI*

    * rtpMIDI, ProPlex Software functionality and multiple unit selection/navigation
    will be added in future firmware updates


    Coming soon with firmware v1.11
    •  MIDI data passthrough
    •  Flywheel generator mode
    •  Support MIDI Machine control messages
    •  IQ Manager integration
