Regeneration and conversion to and from: SMPTE LTC, ARTNET TC, USB MIDI

Features

• Micro Size, Major Power

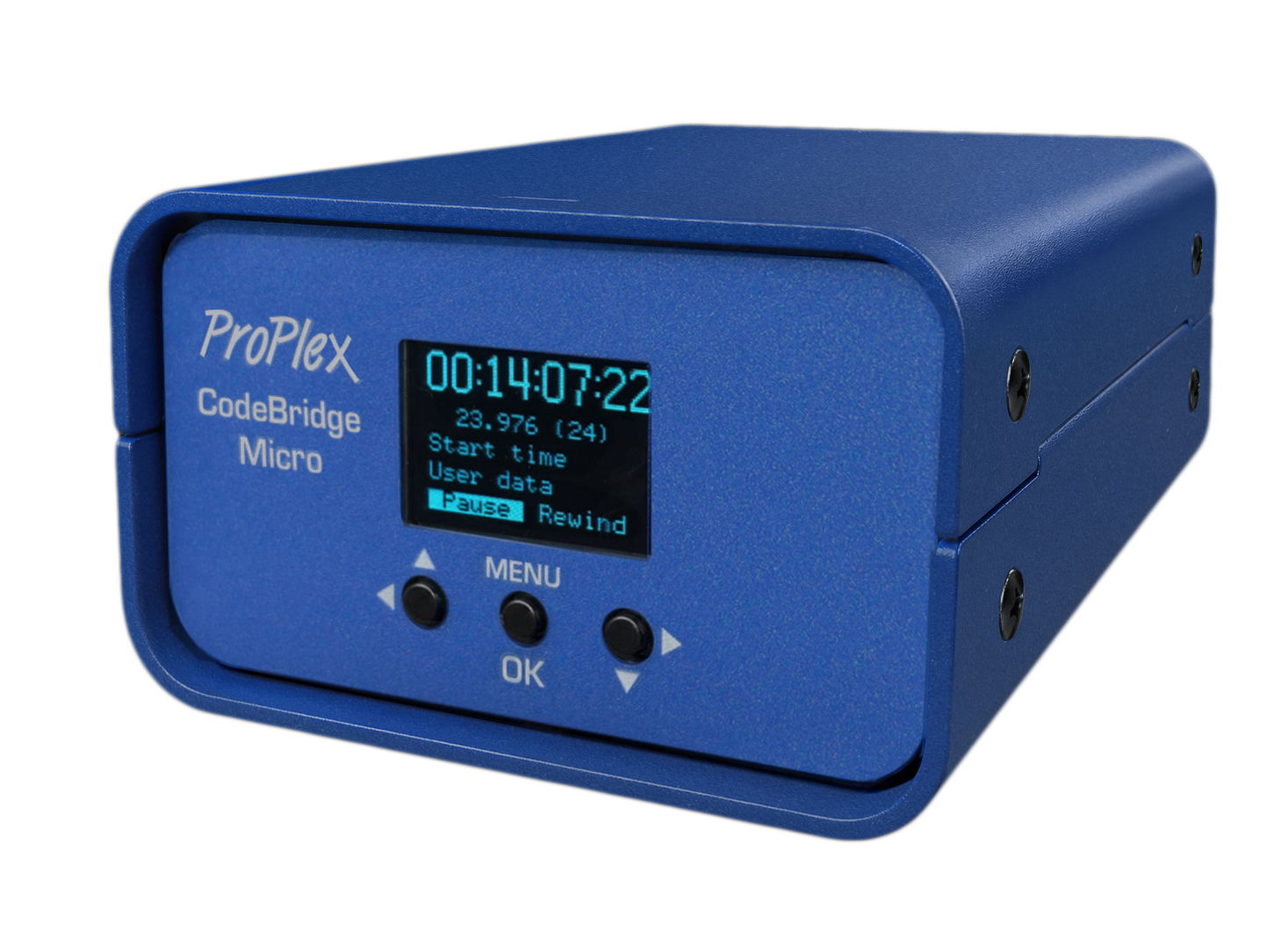

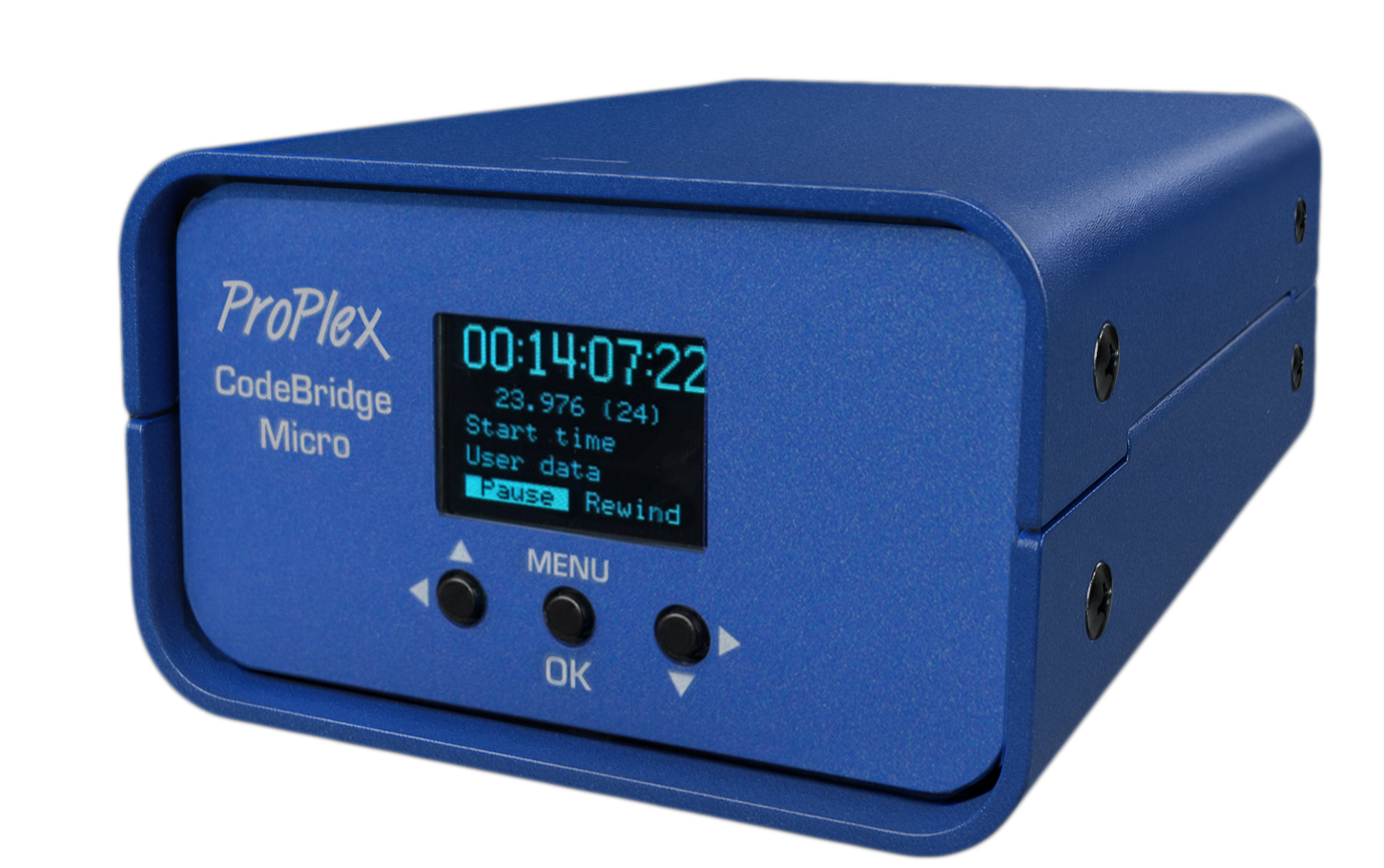

• OLED control panel with intuitive U.I., including input levels and LTC oscilloscope

• Full-featured browser monitoring and control with clock and OLED screen mirroring

• Can distribute timecode through an existing network infrastructure

• Assign StreamID to transmitted streams and filter incoming streams

• Passive LTC routing - no power needed

• Automatic failover – if a source is lost, the next input is promoted to primary

• Adjustable output level (-18 dBu to +6 dBu)

• Redundant power – USB-C and PoE

• USB cable retaining clamp

• Backpack friendly. Compact. Lightweight. Rugged. Reliable.

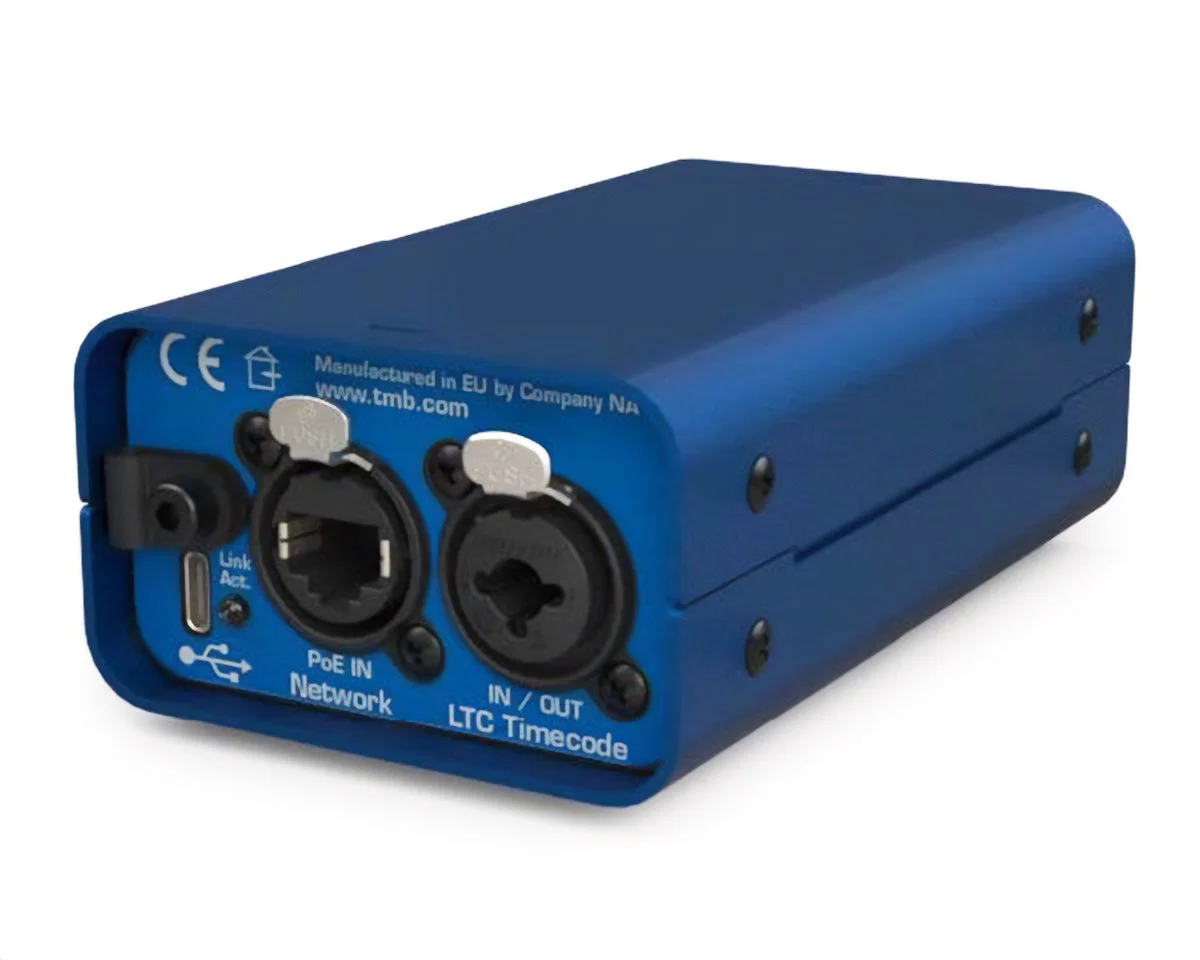

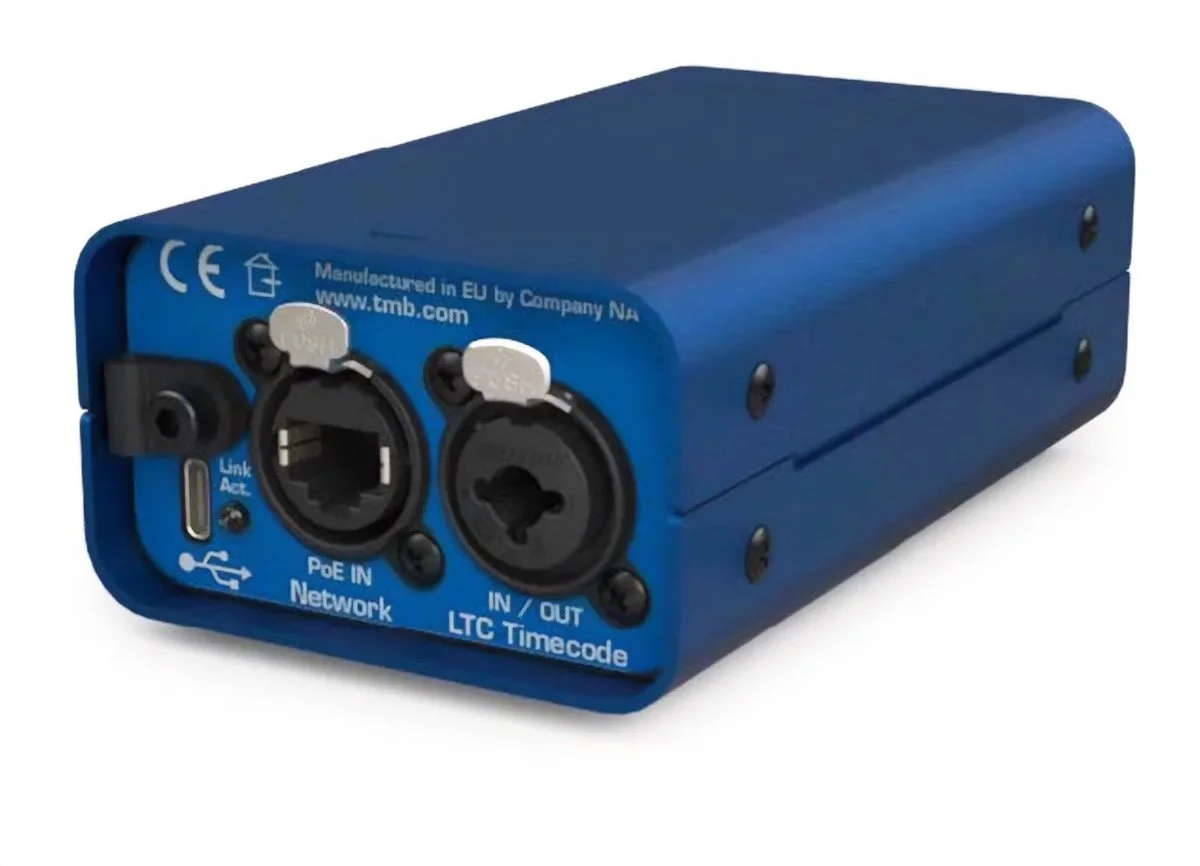

Connectivity

• 100Mbit Ethernet + PoE input (EtherCon)

• USB-MIDI (MIDI in and out)

• Selectable LTC In/Out (XLR-Jack combo):

Input: Balanced/Unbalanced, sensitivity threshold −25dBu / 50mV

  o   Output: Balanced - transformer isolated; level adjustable −18dBu to +5.4dBu

• USB-C LV power - consumption ~ 1W

 • Adjustable output level (-18 dBu to +6 dBu)

• 0.96” white OLED screen with 3 buttons
