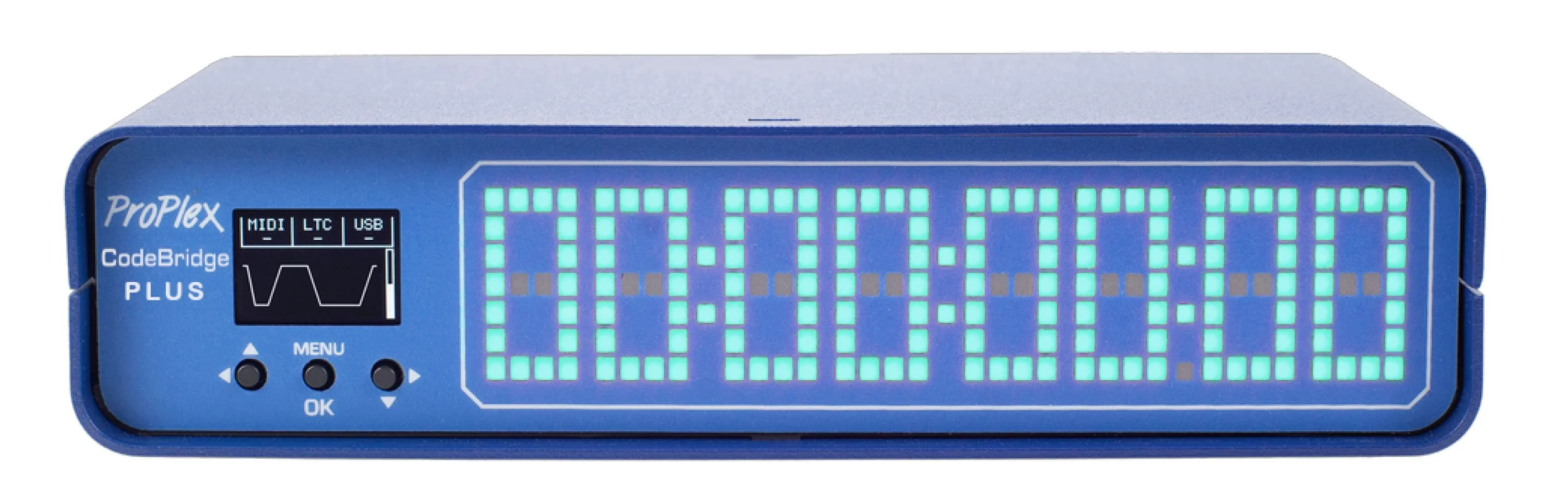

Multi-format timecode converter with a dot-matrix RGB LED clock display.
Supports multiple protocols with all industry standard rates and formats.
A suite of timecode functions: receive, transmit, convert, analyze, repair, generate.
Sends and Receives: ARTNET TC: SMPTE LTC: DIN-5 MIDI MTC: USB MIDI: RTP-MIDI
CodeBridge Plus listens to multiple timecode sources simultaneously. A user-designated primary stream is regenerated, synced and output.
This primary stream is converted to every supported protocol, providing clean, reliable timecode from all output ports.
■ Dot-matrix, RGB LED clock display
■ Passive LTC routing - no power needed
■ Many In, Primary Out – any input can be elected as “primary” and converted to all outputs
■ Automatic failover – if a source is lost, the next input is promoted to primary
■ Distribute timecode through an existing network infrastructure
■ Assign StreamID to transmitted streams and filter incoming streams

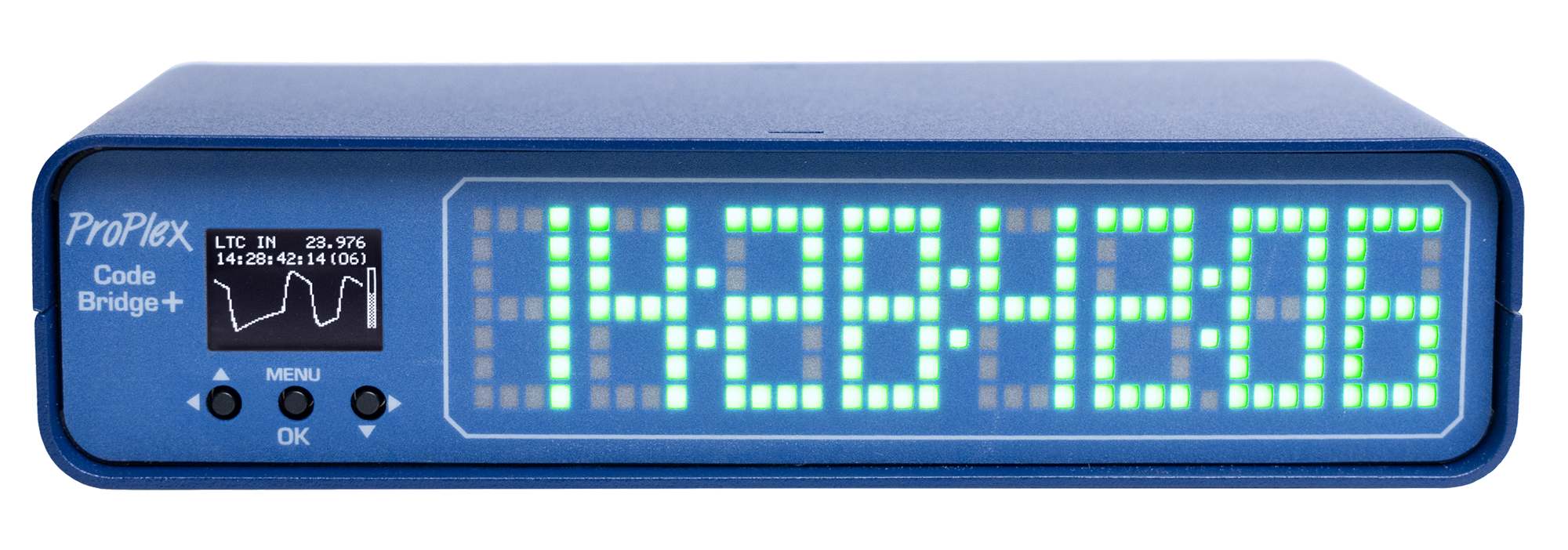

■ OLED control panel with intuitive user interface, input monitors and LTC oscilloscope
■ Full-featured browser monitoring and control includes large clock and OLED screen mirroring options

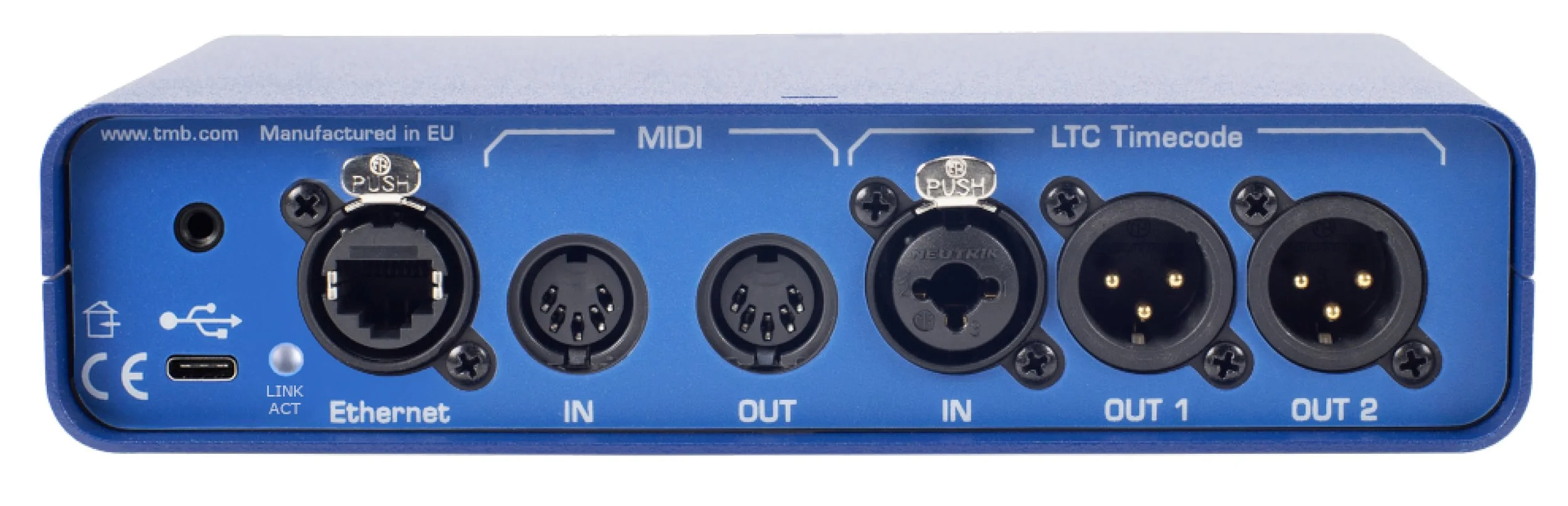

■ Two transformer-isolated XLR3 LTC outputs. Adjustable output level (-18 dBu to +9 dBu)
■ Compact, lightweight, rugged, reliable. Backpack friendly
■ USB cable retainer
■ Available rackmount kit and yoke options
■ Redundant power – USB-C and PoE
