Multi-purpose Time-Code processor
LTC Management, Monitoring, Distribution, Conversion, Regeneration Analog/Ethernet. SMPTE/RTP MIDI/MIDI. Source/output selection. Remote triggering. Regeneration. Protocol conversion. RGB Clock display. LTC waveform analysis, Network and
Analog distribution.







CodeCommander listens to multiple timecode sources simultaneously. A user-designated primary stream is regenerated, synced and output. This primary stream is converted to every supported protocol, providing clean, reliable timecode from all output ports.

Fully compatible with industry standard Time-Code protocols:

• SMPTE timecode (LTC) via balanced XLR, TRS, CPC, or DB-25
• Art-Net Timecode, including stream ID
• RTP MIDI via Ethernet
• MIDI timecode (MTC) via USB-C and DIN-5
• GenLock Video Sync via BNC

Convert and distribute the primary Time-Code source over up to 12 balanced LTC outputs

•4x XLR3 outputs built-in (base model)
• Optional extra panel with 8 outputs. With DB-25, CPC, TRS or GENLOCK connector options
• Remote access and screen-mirroring via built-in Web Browser
• Signal shape regeneration and jitter reduction
• Output level adjustment up to +6dBu (independent for XLR and optional panels)
• 4 user-configurable preset buttons which trigger source selection modes
   * Automatic (default) - the primary source selection is automatic
   * Priority – force a specific source priority list which behave as automatic backup
   * Generator – start and stop the internal LTC generator
   * Flywheel Generator – jam sync to the primary source

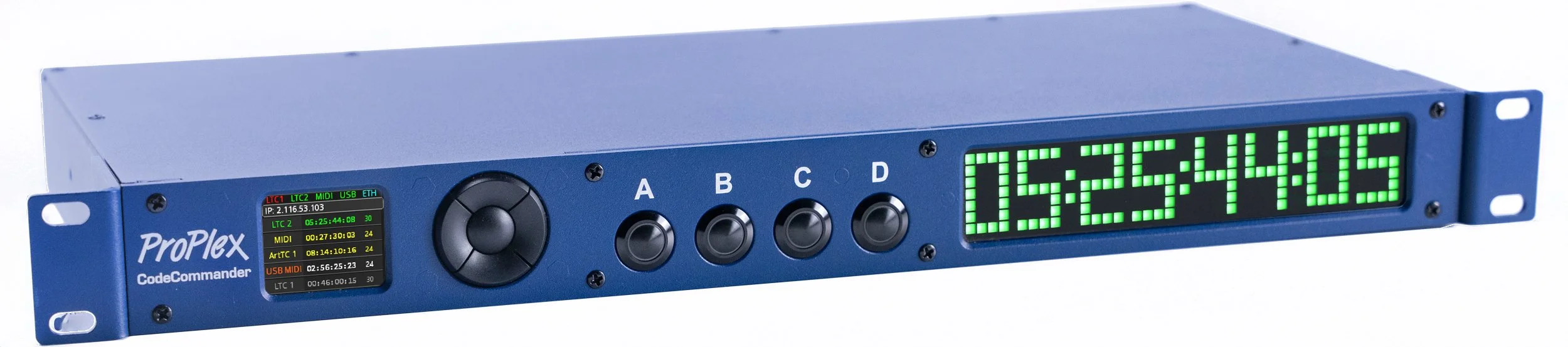

• Large RGB LED dot-matrix clock displays time and status
• Built-in timecode generator capable of running at any standard frame rate
• Format Conversion – lock the output to 24, 25, 30 or DF  (global setting)
• LCDscreen with tactile navigation plus oscilloscope and level meter
• OSC support
• Supports playback from MIDI Machine Control messages (Play, Stop, Goto)• Redundant power via Mains Input and PoE


CodeCommander firmware is in active development. Upcoming features, coming soon, include:
•   Source/Output matrix routing for multiple sources
•   MIDI data passthrough
•   ProPlex Software implementation
•   Save and upload unit configurations via PC

Coming soon with firmware v1.13
•  MIDI data passthrough
•  Flywheel generator mode
•  Support MIDI Machine control messages
•  IQ Manager integration

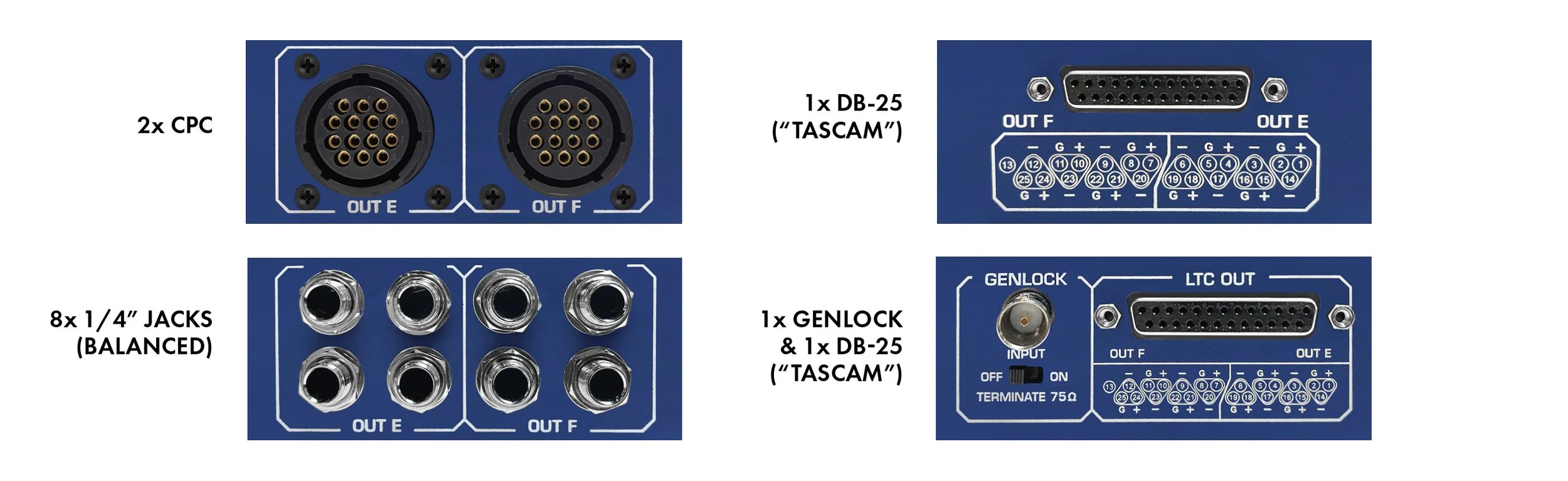

Add 8 additional LTC outputs by specifying an optional output panel from these options:
8x 1/4” Jacks (balanced) • 1x DB-25 (“TASCAM”) • 2x CPC • 1x GENLOCK + 1x DB-25 (“TASCAM”)
(GENLOCK + DB-25)

The CodeCommander optional 8-channel Output Plates are “Factory (TMB) Install Only” by policy
