Robust and Reliable SGBS Gigabit Switches — Powerful. Durable. Simple.

Effortless Push-Button Management for Portable Entertainment Networks




  • Powerful, rugged switches suitable for high volume, multicast, real-time show data

  • Unique SGBS LCD Control Panel provides simple push-button access to configuration options most useful for advanced entertainment networks.

  • ProPlex “Blue Box” rugged tour-ready enclosures. Built for extreme conditions. Shock-mounted circuitry. Advanced thermal management.

  • Compatible with a wide range of entertainment-specific protocols, including AES67, ArtNet, Dante, GreenGo, HippoNet, HogNet, Livewire, MA-Net 2/3, Q-LAN, RAVENNA, RDMNet, sACN, and more!

  • PoE and non-PoE versions available

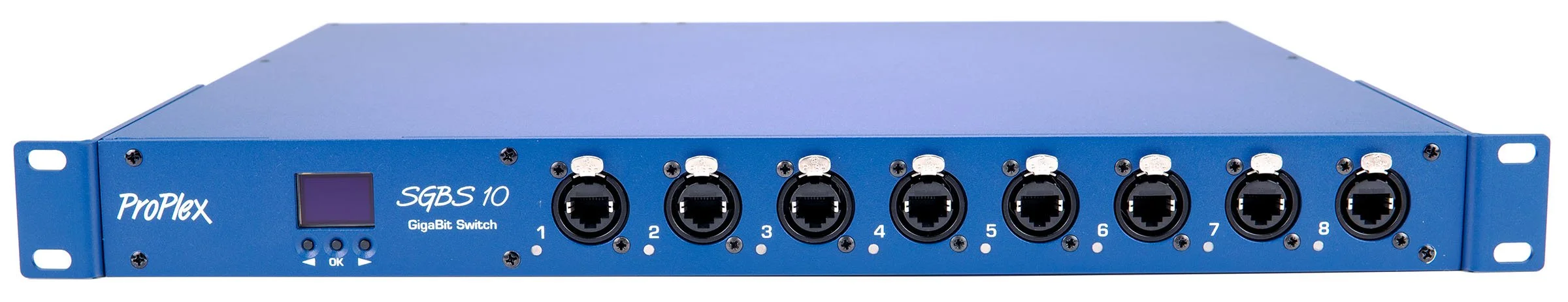

  • 8 front Gigabit Ethernet ports with tour-grade EtherCON connectors

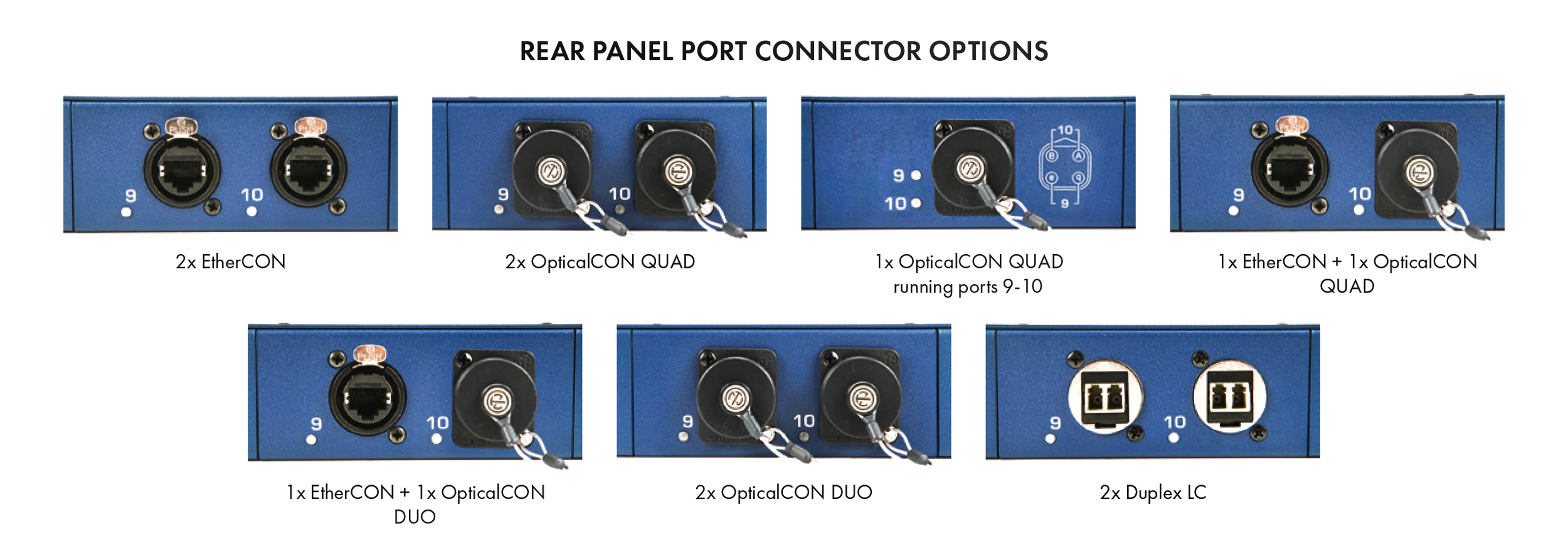

  • 2 rear Ethernet ports, available with: EtherCON, Duplex LC, OpticalCON QUAD, OpticalCON DUO connectors.

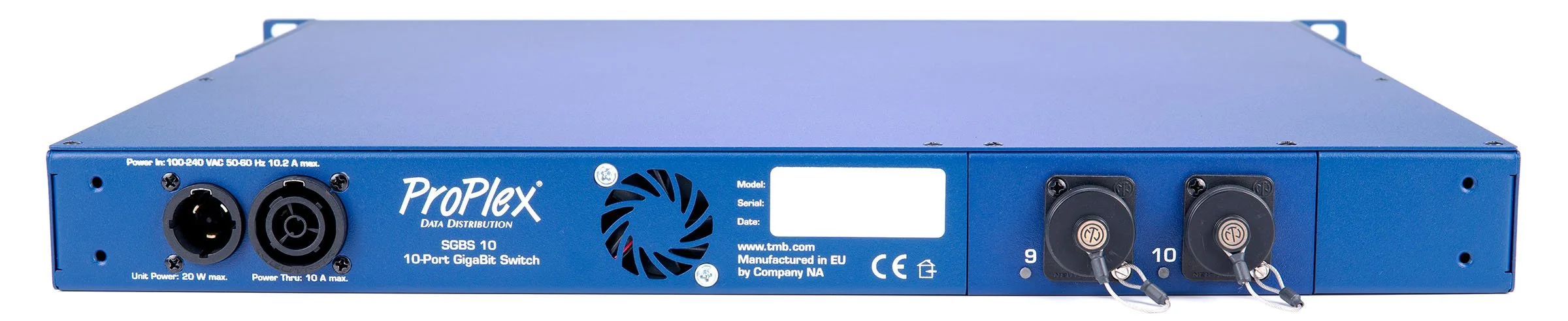

  • 100-240 VAC, 50-60 Hz with PowerCON TRUE1 in and thru




US CUT SHEET
A4 CUT SHEET
Manual
Firmware
WARRANTY



LCD Control Panel

Everything you need at your fingertips! Easily switch configurations with simple button presses.
Switch management without the support calls!
